Iblai Vibe Agent Billing

---
name: iblai-vibe-agent-billing
description: Add the agent Billing tab (LLM spend limits for the agent and per user, with usage bars, block/alert enforcement, and near-limit alert thresholds) to your Next.js app
globs:
alwaysApply: false
metadata:
  kind: ui
---

# /iblai-vibe-agent-billing

Add the agent **Billing tab** -- set LLM spend limits for this agent
and its users, and see how much has been used. Two sub-tabs match the
backend's agent-level scopes: **This Agent** (the agent's own spend
cap) and **Per User** (explicit per-user limits on this agent, with
the user picked through a platform-user search). Each limit has an
enable toggle, a usage bar (spent / % used / remaining), a spend
amount with a reset interval (day/week/month/year), an enforcement
mode (**Block Requests** or **Alert Only**), and comma-separated
alert thresholds at which admins get a near-limit alert. Enforcement
is server-side — a blocked request is refused with a `429` /
`spend_cap_exceeded` error until the period resets. This is one tab
in the wider agent-settings family. All tabs share the same
`AgentSettingsProvider` wrapper.

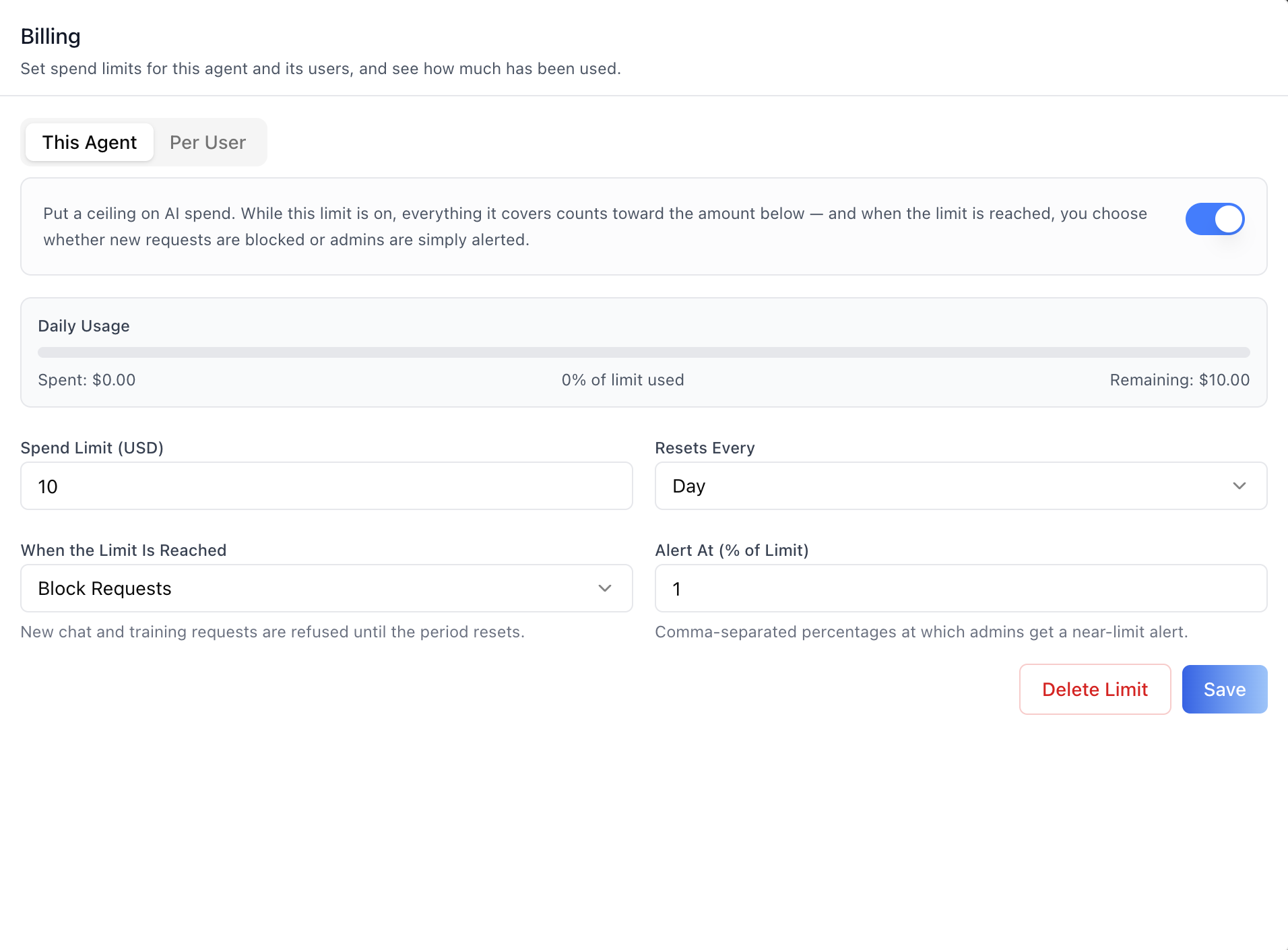

![Billing Tab — This Agent](https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/skills/agents/iblai-vibe-agent-billing/iblai-vibe-agent-billing.png)

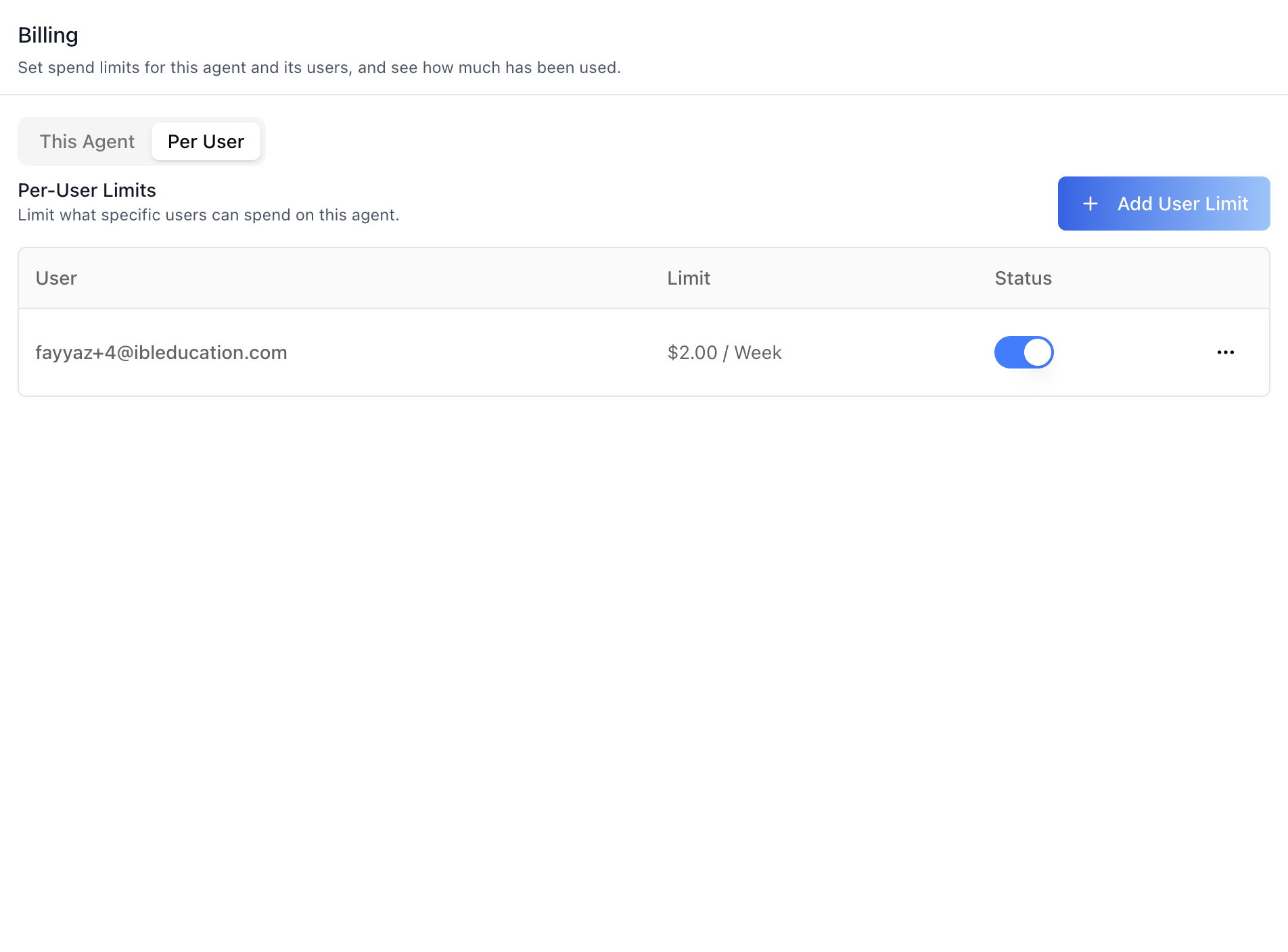

![Billing Tab — Per User](https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/skills/agents/iblai-vibe-agent-billing/iblai-vibe-agent-billing-per-user.png)

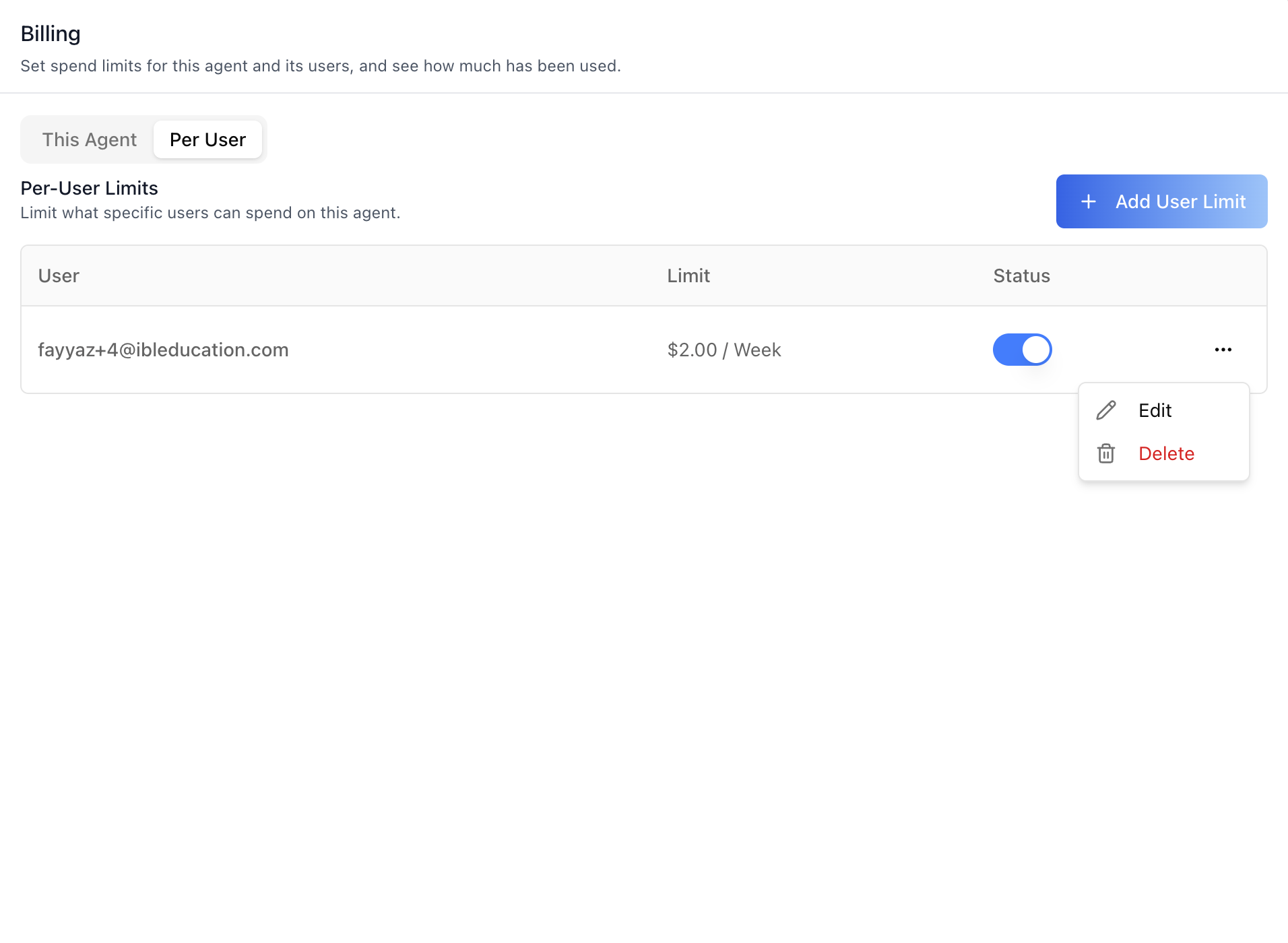

![Per User — Row Actions (Edit / Delete)](https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/skills/agents/iblai-vibe-agent-billing/iblai-vibe-agent-billing-actions.png)

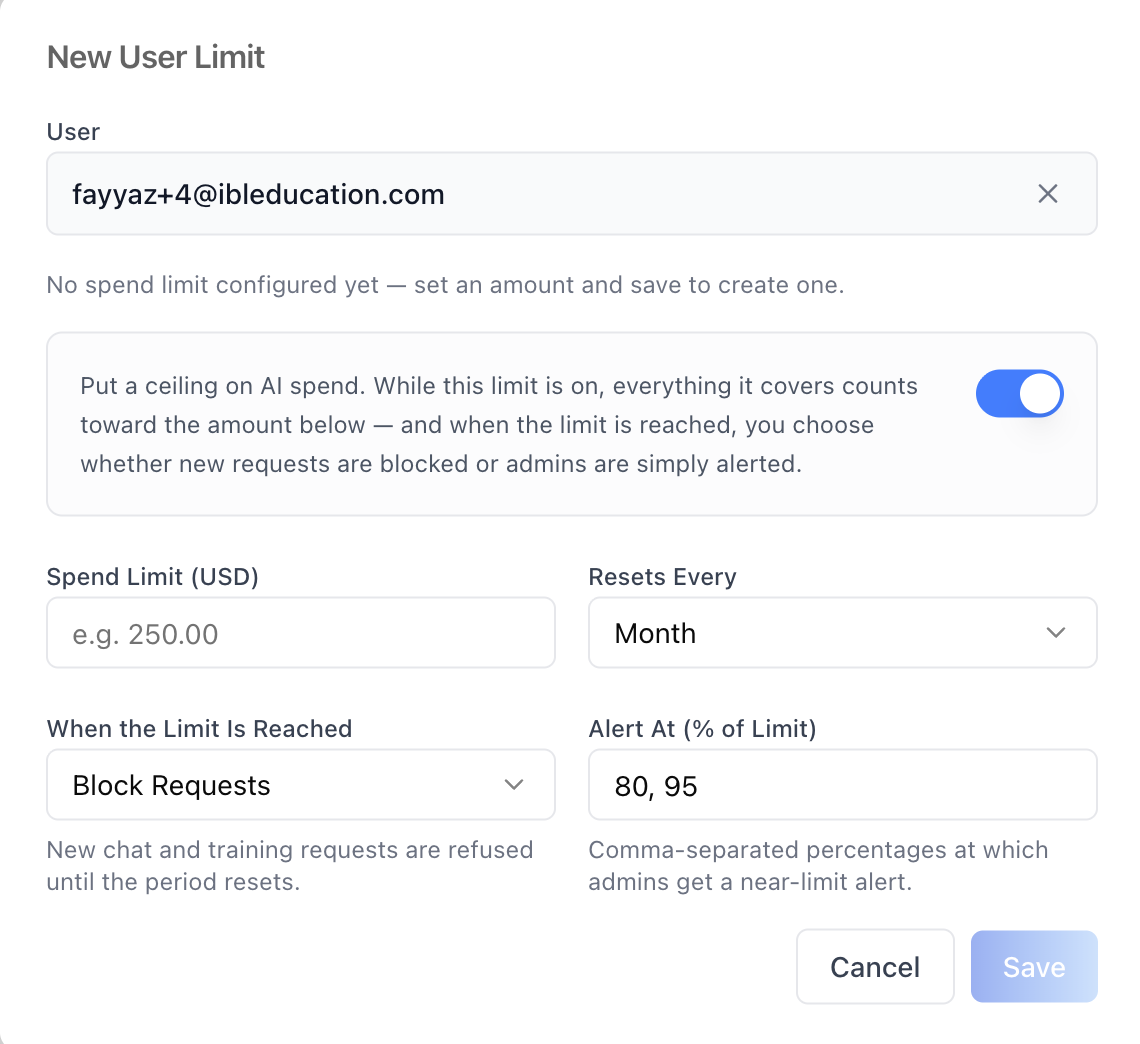

![New User Limit Modal](https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/skills/agents/iblai-vibe-agent-billing/iblai-vibe-agent-billing-new-user-limit.png)

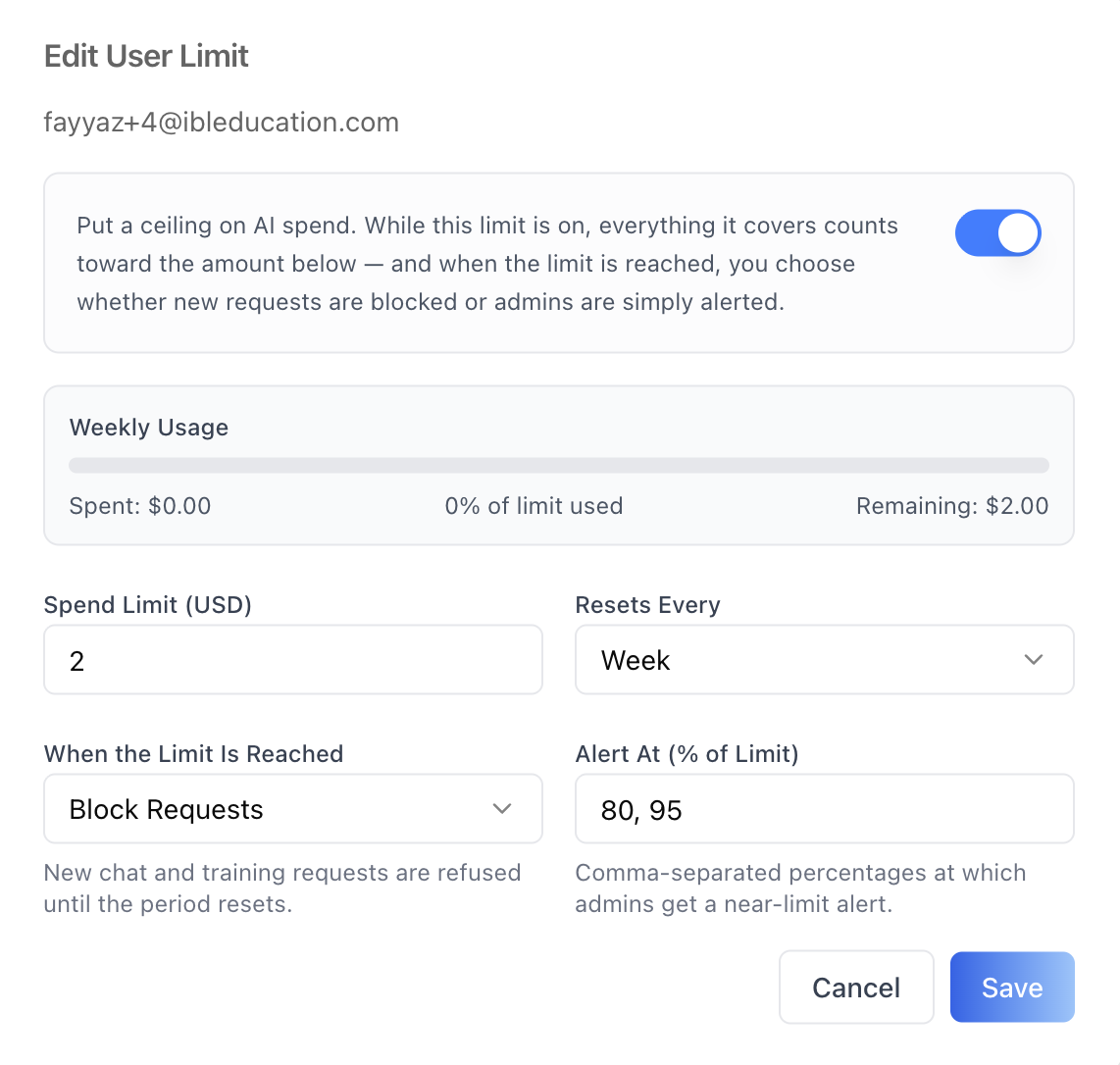

![Edit User Limit Modal](https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/skills/agents/iblai-vibe-agent-billing/iblai-vibe-agent-billing-edit-user-limit.png)

> **Common setup (brand, conventions, env files, verification):** see [docs/skill-setup.md](https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/docs/skill-setup.md).

## Prerequisites

- Auth must be set up first (`/iblai-vibe-auth`)
- MCP server + skills configured (`@iblai/mcp` in `.mcp.json`)
- `AgentSettingsProvider` must wrap the route (see `/iblai-vibe-agent-setting`
  Step 2 if not already set up)
- Ask the user for a real `mentorId` (agent UUID). Do NOT invent one.
- The spend-cap endpoints are RBAC-gated admin endpoints — a user
  without access sees a friendly "no access" panel per sub-tab (403).

## Step 1: Check Environment

Before proceeding, check for an `iblai.env` in the project root. Look for
`PLATFORM`, `DOMAIN`, and `TOKEN` variables. If the file does not exist or
is missing these variables, tell the user:
"You need an `iblai.env` with your platform configuration. Download the
template and fill in your values:
`curl -o iblai.env https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/iblai.env`"

## Step 2: Mount `AgentSpendCapsTab`

```tsx
// app/(app)/agents/[mentorId]/billing/page.tsx
"use client";

import { AgentSpendCapsTab } from "@iblai/iblai-js/web-containers/next";

export default function AgentBillingPage() {
  return (
    <div className="flex h-full flex-col bg-white">
      <AgentSpendCapsTab />
    </div>
  );
}
```

`AgentSpendCapsTab` reads `tenantKey` and `mentorId` from
`AgentSettingsProvider`. No props are required for the standard mount.

## Step 3: Customize Labels (Optional)

```tsx
import { AgentSpendCapsTab } from "@iblai/iblai-js/web-containers/next";

<AgentSpendCapsTab
  labels={{
    header: { title: "Spend limits" },
    subTabs: { agent: "Agent limit", users: "User limits" },
  }}
/>;
```

## Step 4: Use MCP Tools for Customization

```
get_component_info("AgentSpendCapsTab")
get_component_info("SpendCapUsage")
get_component_info("AgentSettingsProvider")
```

## `<AgentSpendCapsTab>` Props

Import from `@iblai/iblai-js/web-containers/next`.

| Prop | Type | Required | Description |
|------|------|----------|-------------|
| `labels` | `DeepPartial<SpendCapsTabLabels>` | No | Override user-visible strings |
| `tenantKey` | `string` | No | Identity override; defaults to `AgentSettingsProvider` |
| `mentorId` | `string` | No | Identity override; defaults to `AgentSettingsProvider` |
| `headerClassName` | `string` | No | Extra classes on the tab header (wide-dialog hosts widen padding) |
| `bodyClassName` | `string` | No | Extra classes on the scrollable body |

## What the tab renders

- **Header** — "Billing" title and "Set spend limits for this agent
  and its users, and see how much has been used."
- **This Agent / Per User sub-tabs** — the two agent-level scopes. The
  tab ratchets its height so switching sub-tabs never shrinks the
  dialog it is hosted in.
- **No-access state** — when the current user lacks permission for a
  scope's endpoints (403), that sub-tab's content is replaced by a
  "no access" notice.

### Shared spend-cap editor (both scopes)

Both sub-tabs edit a cap through the same `SpendCapForm`:

- **Enable toggle** — "Put a ceiling on AI spend…" capability gate.
  While on, everything the limit covers counts toward the amount;
  fields collapse when toggled off. The flag rides along on save.
- **Usage strip** (saved caps only) — "Daily/Weekly/Monthly/Yearly
  Usage" with a progress bar (blue, amber at ≥80%, red when
  exceeded) and Spent / % of limit used / Remaining figures, plus
  Disabled / Alert only / Exceeded badges as applicable.
- **Spend Limit (USD)** — positive decimal; sent as a 2-decimal
  string.
- **Resets Every** — Day / Week / Month / Year.
- **When the Limit Is Reached** — `Block Requests` (new chat and
  training requests are refused until the period resets) or
  `Alert Only` (requests continue; admins are alerted).
- **Alert At (% of Limit)** — comma-separated percentages (default
  `80, 95`) at which admins get a near-limit alert.
- **Delete Limit** (saved caps only) — confirmation dialog before
  removal. **Save** creates the cap on first save and updates it
  after (the PUT is an upsert).
- Until a cap exists the form shows "No spend limit configured yet —
  set an amount and save to create one."

### This Agent sub-tab

The agent's own singleton spend cap — everything spent on this agent
by anyone counts toward it.

### Per User sub-tab

Explicit (user, agent) limits — "Limit what specific users can spend
on this agent."

- **Table** — User (email-first, linked to the same profile viewer as
  the Management tab; clicking the row opens it too), Limit
  (`$2.00 / Week`), Status (direct enable toggle that saves
  immediately, plus Exceeded / Alert-only badges), and a per-row
  actions menu (**Edit** / **Delete**).
- **Add User Limit** — opens the New User Limit modal: pick the user
  through a debounced platform-user search (min 2 characters,
  email-only options — no free-text usernames), then fill the same
  spend-cap form. Edit mode skips the picker and goes straight to
  the form for the cap's user.
- **Delete** — confirmation dialog showing the user's email.

## Related Exports

From `@iblai/iblai-js/web-containers/next`:

- `AGENT_SPEND_CAPS_TAB_LABELS` -- the default label bundle.
- `SpendCapsTabLabels` -- type for the full label bundle.
- `AgentSpendCapsTabProps` -- props type for the tab.
- `SPEND_CAPS_SUB_TABS` -- the sub-tab keys (`agent`, `users`).
- `useSpendCaps` -- the tab's data hook (caps + save/delete per
  scope), for custom UI on the same endpoints.
- `SpendCapUsage`, `SpendCapUsageProps` -- **learner-safe** usage
  indicator for chat surfaces: renders progress zones and percentages
  only (never dollar amounts), a warning banner near a limit, and a
  blocked banner once a hard-block cap is exceeded. Renders nothing
  while everything is in the "ok" zone unless `showWhenOk` is set.

From `@iblai/iblai-js/data-layer` -- the RTK Query hooks and types the
tab uses, for custom UI built on the same endpoints:

- Agent cap: `useGetAgentSpendCapQuery`,
  `useUpsertAgentSpendCapMutation`, `useDeleteAgentSpendCapMutation`
- Per-user caps: `useListAgentUserSpendCapsQuery`,
  `useGetUserSpendCapQuery`, `useUpsertUserSpendCapMutation`,
  `useDeleteUserSpendCapMutation`
- Organization cap (workspace-wide singleton):
  `useGetTenantSpendCapQuery`, `useUpsertTenantSpendCapMutation`,
  `useDeleteTenantSpendCapMutation`
- Organization-wide agent-cap list: `useListAgentSpendCapsQuery`
  (optional `mentor` filter)
- User-safe status: `useGetSpendCapStatusQuery`
- Types: `SpendCap`, `SpendCapUpsertRequest`, `SpendCapIntervalType`,
  `SpendCapEnforcement`, `SpendCapScope`, `SpendCapStatusSummary`,
  `SpendCapStatusItem`, `SpendCapStatusZone`,
  `SpendCapExceededErrorBody`
- `SPEND_CAP_EXCEEDED_ERROR_CODE` -- the `spend_cap_exceeded` error
  code carried by blocked requests (HTTP 429 body / WebSocket frame),
  distinguishing a spend-cap block from a genuine provider rate limit.

## Step 5: Verify

Run `/iblai-vibe-ops-test` before telling the user the work is ready:

1. `pnpm build` -- must pass with zero errors
2. `pnpm test` -- vitest must pass
3. Start dev server and touch test:
   ```bash
   pnpm dev &
   npx playwright screenshot http://localhost:3000/agents/<id>/billing /tmp/agent-billing.png
   ```

## Important Notes

- **Redux store**: Must include `mentorReducer` and `mentorMiddleware`
- **`initializeDataLayer()`**: 5 args (v1.2+)
- **`@reduxjs/toolkit`**: Deduplicated via webpack aliases in `next.config.ts`
- **Peer deps**: `sonner` and `@iblai/iblai-web-mentor` must be installed
  (`pnpm add sonner @iblai/iblai-web-mentor`)
- **Shared provider**: `AgentSettingsProvider` must wrap the route at a
  layout level. See `/iblai-vibe-agent-setting` Step 2 for the full snippet.
- **First-run 404 is normal**: the singleton GETs 404 until a cap is
  first saved — that is the documented "no cap configured" state, not
  an error. The first Save creates the row.
- **Counters are read-only**: `current_spend_usd`, `remaining_usd`,
  and `is_exceeded` are reconciled server-side and only rendered —
  never submitted. Admins write `interval_type`, `max_cost_usd`
  (decimal **string**), `enforcement`, `alert_thresholds`, `enabled`.
- **PUT is an upsert**: the status toggles in the tables save
  immediately by re-submitting the cap's current fields with the
  flipped `enabled` flag.
- **Username key, email display**: per-user caps are keyed by
  `username` in the API; the UI deliberately shows the email
  everywhere. The user is picked via search — no free-text usernames.
  A cap read echoes `username`, `email` and `user_full_name`, so the
  table renders the person without a second request.
- **Enforcement is server-side**: with `block`, an exceeded cap makes
  chat/training requests fail with HTTP 429 (or a WebSocket error
  frame) whose body carries `error_code: "spend_cap_exceeded"`.
  Handle it in custom chat UI, or mount `SpendCapUsage` to warn users
  before they hit it.
- **Three scopes**: organization (workspace-wide), agent, and per-user-per-
  agent — the tightest applicable cap governs. This tab manages the
  two agent-level scopes; the workspace-wide limit belongs to the
  organization settings Billing surface (`/iblai-vibe-billing`, which also
  lists every agent's cap in one place).
- **RBAC**: each scope's endpoints are gated separately; a 403 renders
  the denied panel for that sub-tab only.
- **Brand guidelines**: [BRAND.md](https://raw.githubusercontent.com/iblai/vibe/refs/heads/main/BRAND.md)

## Spend Caps REST API

For custom UI beyond the tab. All endpoints are prefixed with
`${dmUrl}/api/ai-mentor/orgs/{org}/` where `dmUrl` is
`NEXT_PUBLIC_API_BASE_URL`. Auth: `Authorization: Token <token>`.
Use the canonical `agents/` spelling — `mentors/` is a deprecated
alias.

### Agent spend cap (singleton per agent)

| Method | Path | Purpose |
|---|---|---|
| GET | `agents/{mentor_unique_id}/spend-cap/` | Read (404 = no cap configured) |
| PUT | `agents/{mentor_unique_id}/spend-cap/` | Upsert — create or update |
| DELETE | `agents/{mentor_unique_id}/spend-cap/` | Remove the cap |

**Upsert body:**

```json
{
  "interval_type": "day",
  "max_cost_usd": "10.00",
  "enforcement": "block",
  "alert_thresholds": [80, 95],
  "enabled": true
}
```

`interval_type`: `day` | `week` | `month` | `year`.
`enforcement`: `block` | `alert_only`. `max_cost_usd` is a decimal
string. Responses add the read-only counters (`current_spend_usd`,
`remaining_usd`, `is_exceeded`, `period_started_at`,
`last_reconciled_at`).

### Per-user limits on an agent

| Method | Path | Purpose |
|---|---|---|
| GET | `agents/{mentor_unique_id}/spend-caps/users/` | List this agent's user caps |
| GET | `agents/{mentor_unique_id}/spend-caps/users/{username}/` | Read one (404 = none) |
| PUT | `agents/{mentor_unique_id}/spend-caps/users/{username}/` | Upsert (same body as above) |
| DELETE | `agents/{mentor_unique_id}/spend-caps/users/{username}/` | Remove |

The list may come back as a bare array or a DRF limit/offset
envelope depending on deployment — the SDK slice normalizes both.

### Organization scope + organization-wide listing

| Method | Path | Purpose |
|---|---|---|
| GET/PUT/DELETE | `spend-caps/tenant/` | Workspace-wide singleton cap |
| GET | `spend-caps/agents/` | Every configured agent cap in the organization (`?mentor=<uuid>` filter) |

### User-safe status

| Method | Path | Purpose |
|---|---|---|
| GET | `spend-caps/status/{user_id}/` | Zones + fill percentages for the caps covering this user (`?mentor=<uuid>` to include an agent's caps) — never dollar amounts. Non-admins may only read their own |

### Enforcement error

A hard-block cap that is exceeded makes chat/training requests fail
with HTTP 429 (or a WebSocket error frame):

```json
{
  "error_code": "spend_cap_exceeded",
  "error": "...",
  "message": "...",
  "details": { "scope": "agent", "interval_type": "day", "mentor_unique_id": "..." }
}
```

Match on `error_code === "spend_cap_exceeded"`
(`SPEND_CAP_EXCEEDED_ERROR_CODE`) — a genuine provider rate limit
also uses status 429.
